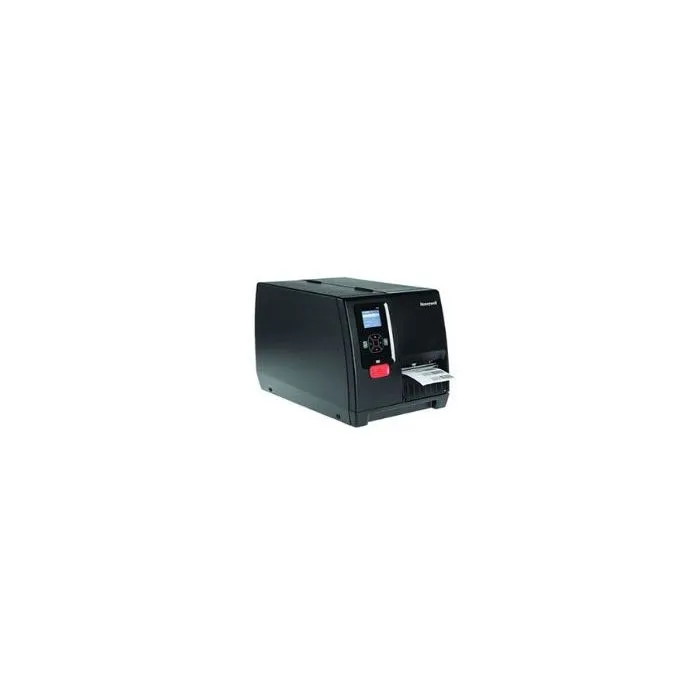

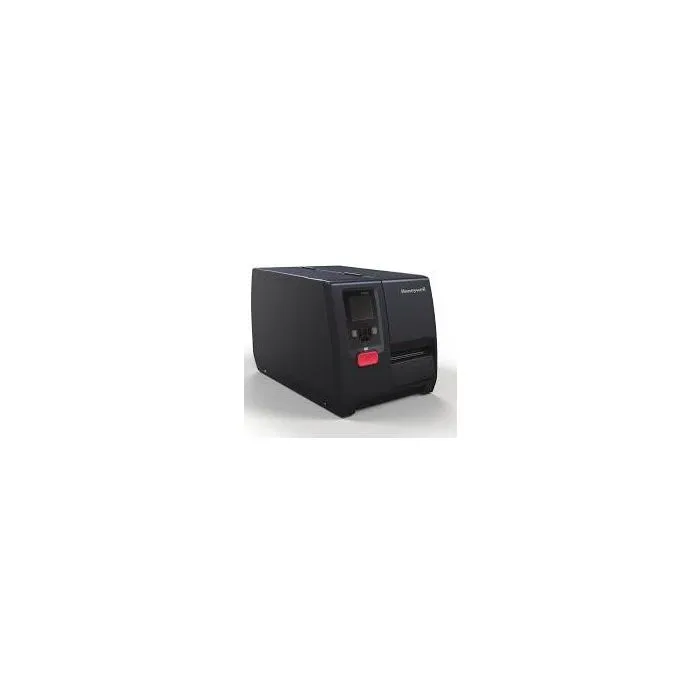

Name: PM42 Honeywell Industrial Barcode Printer With USB/ETHERNET Interface PM42200003
Brand: Zebra
SKU: PM42200003
Availability: InStock

Honeywell PM42 Industrial Barcode Printer (model PM42200003) provides robust and efficient printing solutions, featuring USB and Ethernet connectivity for versatile use.

SKU: PM42200003

315.000 KWD

Add to compare

Add to wishlist

18 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Device Issue / Installation ? Click here

Description

Features and Specifications

MECHANICAL

Dimensions

484 mm x 292 mm x 283 mm (19.1 in x 11.5 in x 11.1 in)

Weight

12.1 kg (26.7 lbs)

OPERATING ENVIRONMENT

Ambient Operating Temperature

+5°C to +40°C (5°F to 104°F)

Storage Temperature

-20°C to +60°C (-4°F to 140°F)

Humidity

20% to 80% non-condensing

INTERFACES

Standard

Ethernet 10/100 Mbps
RS-232, up to 115.2 KB/s
Supported Serial Protocols:
– Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS

– IPL: XON/XOFF, Honeywell Std. Protocol
USB 2.0
USB Host X1

Optional

Parallel IEEE 1284

SUPPORTED PROTOCOLS

TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP supports IPv4 and IPv6

SOFTWARE

Printer Command Languages

IPL, DP, ZSim2 (ZPL-II), DSim (DPL)
XML enabled for SAP® AII and Oracle® WMS

Applications/Drivers

InterDriver Windows® printer driver
Honeywell Device Types for SAP
Honeywell label design and print package

Smart Printing Languages

Honeywell C# for Printers
– Smart Printing Developer Resource Kit

– Write apps with .NET-compatible development environments
Honeywell Fingerprint
– Use Honeywell Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support

PrintSet for printer configuration
Sophisticated web interface for configuration, upgrade and 1:1 management
Wavelink Avalanche

BARCODE SYMBOLOGIES

All major 1D and 2D symbologies are supported, including Aztec, Code 16K, Code49, DataMatrix, DotCode, EAN-8, EAN-13, EAN.UCC 128, GridMatrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

PM42 PRINT SPECIFICATIONS

Max. Width at 203 dpi

108 mm (4.25 in)

Max. Width at 300 dpi

106 mm (4.17 in)

Max. Width at 406 dpi

104 mm (4.09 in)

Max. Length at 203 dpi

4.8 m (15.75 ft)

Max. Length at 406 dpi

1.2 m (3.94 ft)

PRINT SPEED

At 203 dpi/300 dpi

100 mm/s–300 mm/s (4 ips–12 ips)

At 406 dpi

100 mm/s–250 mm/s (4 ips–10 ips)

PRINT RESOLUTION

At 203 dpi

8 dots/mm

At 300 dpi

11.8 dots/mm

At 406 dpi

16 dots/mm

MEDIA

Type

Labels and tags, linerless and linered media

Max./Min. Width

114 mm/19 mm (4.5 in/0.75 in)

Thickness

2.4 to 10.4 mil (with cutter: 3 to 7.6 mil)

Configuration

Roll-fed or fanfold

Sensing

Gap, notch, black mark, continuous

Label Roll Max. Diameter

213 mm (8.38 in)

Label Roll Core

38 mm–76 mm (1.5 in–3 in)

Ribbon Supports

Carbon Inside and Carbon Outside

Roll Max. Diameter

80 mm (3.15 in), approx. 450 m (1,476 ft)

Core ID

25 mm (1 in)

Type

Wax, mid-range, resin

STANDARDS SUPPORTED

UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS Shipping Label; Global Transport Label

FONTS

Monotype font engine

Non-Latin fonts available through WTLE

GRAPHICS

Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools

MEMORY

Standard

128 MB ROM, 128 MB SDRAM, supports external storage (FAT16/FAT32)

USER INTERFACE

Color UI, supports user-customizable interface

USER INTERFACE LANGUAGES

On Color LCD and Web Interface: Simplified and Traditional Chinese, English, Russian, German, French, Portuguese, Spanish, Italian

POWER SUPPLY

AC Voltage

100 VAC to 240 VAC, 45 Hz to 65 Hz

PFC Regulation

IEC320/C14

Power Consumption

Standby 9W; Peak 300W

REGULATORY APPROVALS

RoHS Compliant, CB, CE (EN 60950-1, EN55022/EN55032 Class A), FCC Class A, RCM, KC, CRS, EAC, SASO, NRCS & SABS, S Mark, NOM

OPTIONS AND ACCESSORIES

Integral self-strip unit with liner takeup, label taken sensor (LTS), internal rewinder, parallel interface board, cutter. Consult the PM42 Accessory Guide for full details.
